Calculating a Uvalue

'U' Value definition?

A 'U' value is the measure of heat flowing through a structure  W/sqm.K

Examples of materials used in a house built in 1920;

Single glazing = 5.6   Solid 9” thick wall 2.0

The Heat Loss through 10sqm of a 9” wall assuming

inside temperature of 21C and outside of 1C

 =  Area X Uvalue X Temperature diff =  10 X 2 X 20= 400W

Compare this with a better insulated wall.

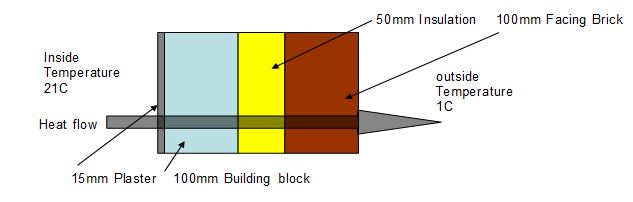

Diagram showing the heatloss in a building

Each material has a resistance to heat flow and the overall U value = 1divided by the sum of resistances



Watch our Uvalue calculation video



You can buy plumbing equipment and tools from our shop.

Calculation of resistances for an insulated wall

Item Thickness (m) Thermal Conductivity (W/mK) Thermal Resistance (m2.k/w)
Iside surface e.g. wall paper / paint - - 0.12
Plaster 0.015 0.170 0.09
Block 0.100 0.230 0.43
Insulation 0.050 0.035 1.43
Brick 0.100 0.860 0.12
Outside surface - - 0.06
Total - - 2.25

U Value = 1/2.25 = 0.44 W/m2K

Heat loss for 10sqm of wall = 10 x 0.44 x 20 = 88w

i.e. An insulated wall is 5 times more efficient as a 9 inch wall (Buy insulation products)

NB: Thermal conductivity factors can be obtained from the product manufacturers

To test a U Value, watch our video on testing a U value
